Product
Polyurethane - Threaded stem with dual brake
Date:2015-11-02 17:11:29 Reading quantity:

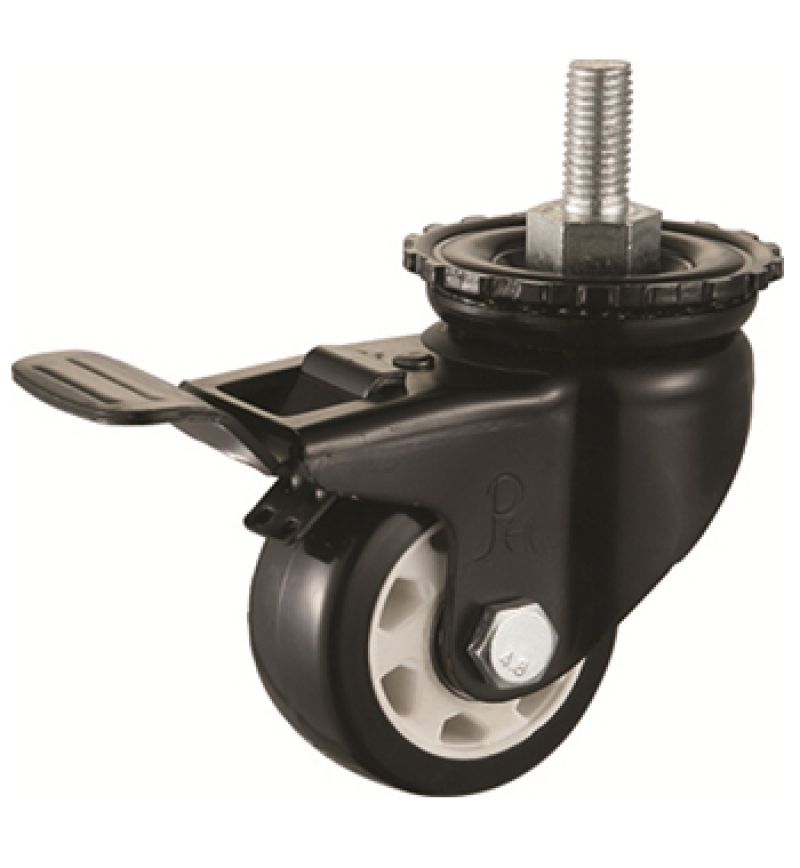

Name：Polyurethane - Threaded stem with dual brake
Item No：
Material：Super polyurethane
Inch number:3 inch
Brake mode:Brake
Product details
|
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
輪徑 (mm) Diameter |
輪寬 (mm) Width |
承載 Load Capacity |
軸承 Bearing |
底板尺寸 (mm) Plate Size |
安裝孔距 (mm) Hole Spacing |
安裝孔直徑 (mm) Hole Size |
轉動半徑 (mm) Swivel Radius |
安裝高度 (mm) Height |
|
|
Dimension parameter
|
75 | 38 | 100 | Ball | - | - | - | 75 | 110 |
Specification parameter
|
Suitable size of caster and top plate (Deluxe caster series)
|
|||||
|
序號 No. |
|
|
|
|
|
|
腳輪尺寸 Caster Size |
底板尺寸(mm) Plate Size |
底板孔距(mm) Hole Spacing |
底板孔徑(mm) Hole Size |
轉動半徑(mm) Swivel Radius |
|
|
1
|
3"
|
101×82
|
77×57
|
10
|
75
|
|
2
|
4"
|
101×82
|
77×57
|
10
|
86
|
